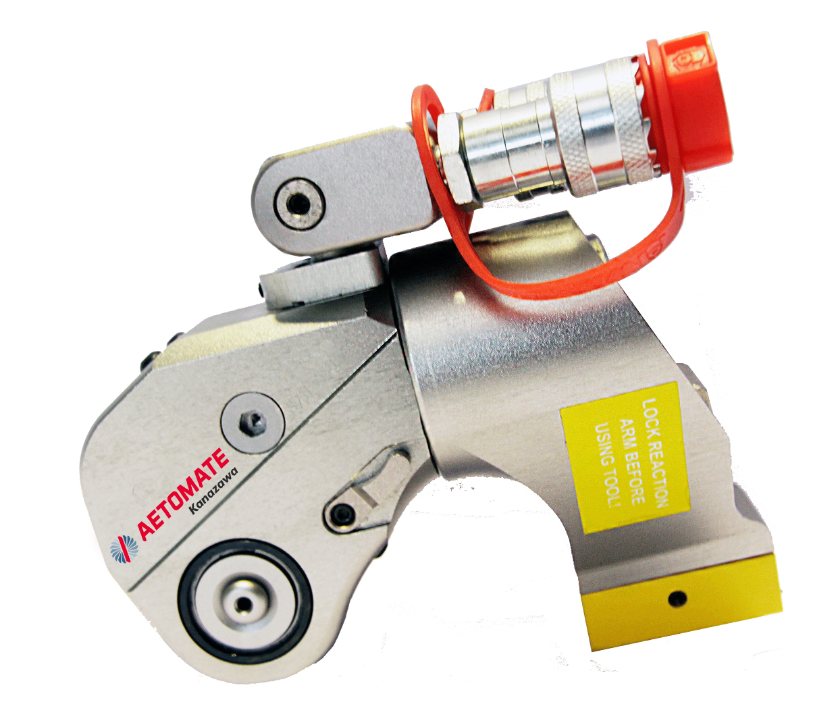

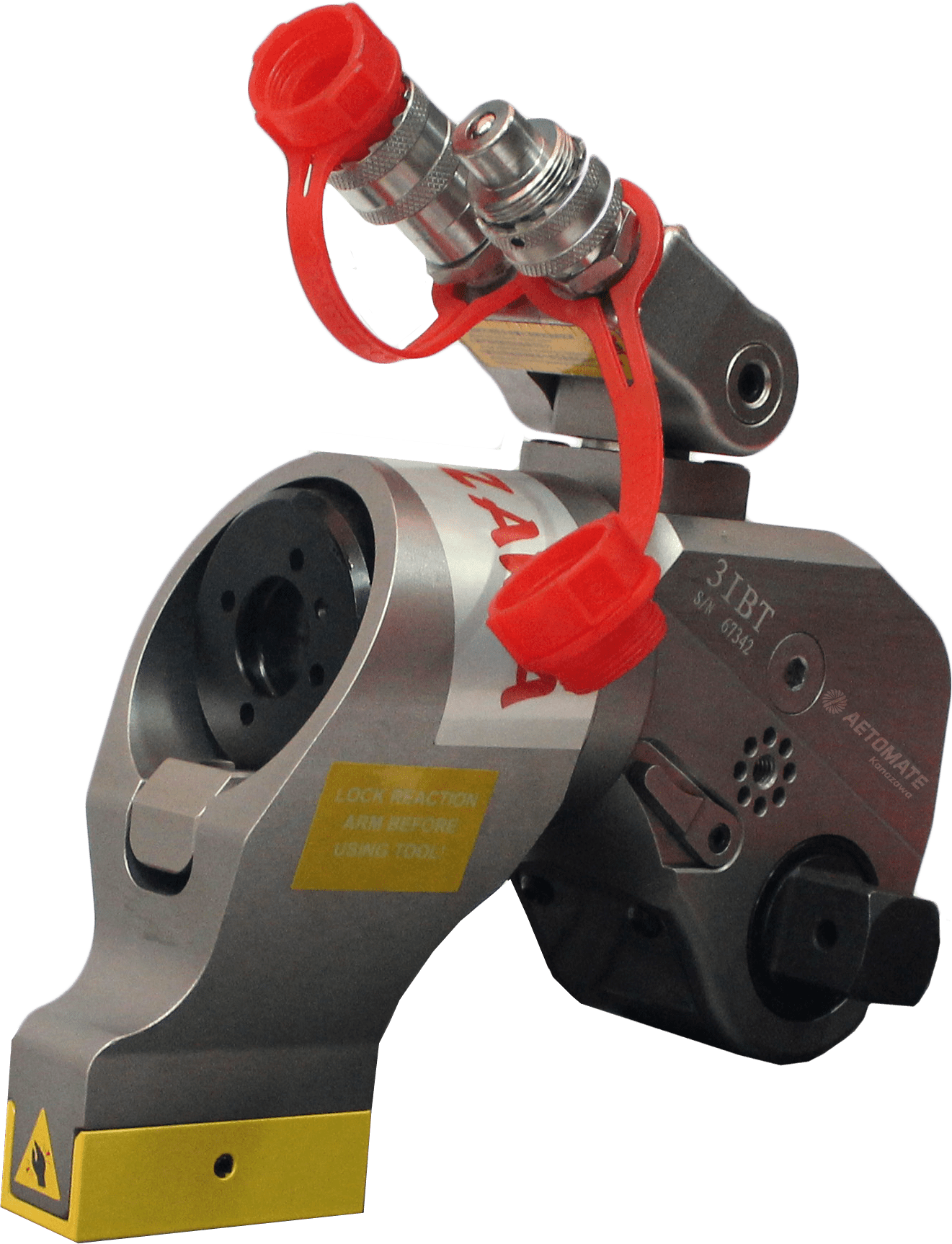

SQUARE DRIVE HYDRAULIC TORQUE WRENCH (IBT SERIES)
BRAND: KANAZAWA
Description
|
Stock Code |
AQ04647 |
AQ04648 |
AQ04649 |
AQ04650 |
AQ04651 |
|
Type |
1 – IBT |
3 – IBT |
5 – IBT |
10 – IBT |
25 – IBT |
|
Torque (N.m) |
183~1837 |
451~4512 |
752~7528 |
1551~15516 |
3472~34725 |
|
Bolt Size (M) |
16~36 |
22~48 |
27~56 |
36~72 |
48~100 |
|
Weight Kg |
2.5 |
5 |
8 |
15 |
35 |
|
L1 |
144.5 |
178 |
210.5 |
245.5 |
323 |
|
L2 |
173.5 |
229 |
270.5 |
317.5 |
401 |
|
H1 |
50 |
68 |
80 |
100 |
137 |
|
H2 |
72 |
95 |
123 |
142 |
200 |
|
H3 |
96 |
127 |
149 |
182 |
247 |
|
H4 |
131 |
176.5 |
199 |
232 |
297 |
|
R1 |
26 |
34 |
39 |
51 |
66 |
|
R2 |
85 |
114 |
137 |
154 |
199 |
|
Square Drive |
3/4″ |
1″ |
1-1/2″ |
1-1/2″ |
2-1/2″ |
IBT series is the professional hydraulic torque wrench which KANAZAWA vigorously extends in international market. Its raw material is aluminium-titanium alloy which makes the wrench light and high intense. IBT series has various models with the range from 112 Nm to 72000 Nm; covers the most of bolts size, and be the most comprehensive available in the market. KANAZAWA provide after-sales service all over the world, and already got the approved by TUV certificate.
- 70Mpa Max working pressure and the accuracy keep within ±3%
- All models with the range from 112N.m to 72000N.m, which covers the most bolts size, and be the most comprehensive available in the market.
- The 360*180 degree swivel is free to operation with no space limitation.
- The square drive operate with the high intense socket and suitable with large range of bolts.
- 360 degree adjustable reaction arm allows placing in any support point.
- Compact design with the raw material of advanced aluminum-titanium alloy, high intense.
- The new locking coupler ensures the oil keep free access.
