Hydraulic Wedge Spreader

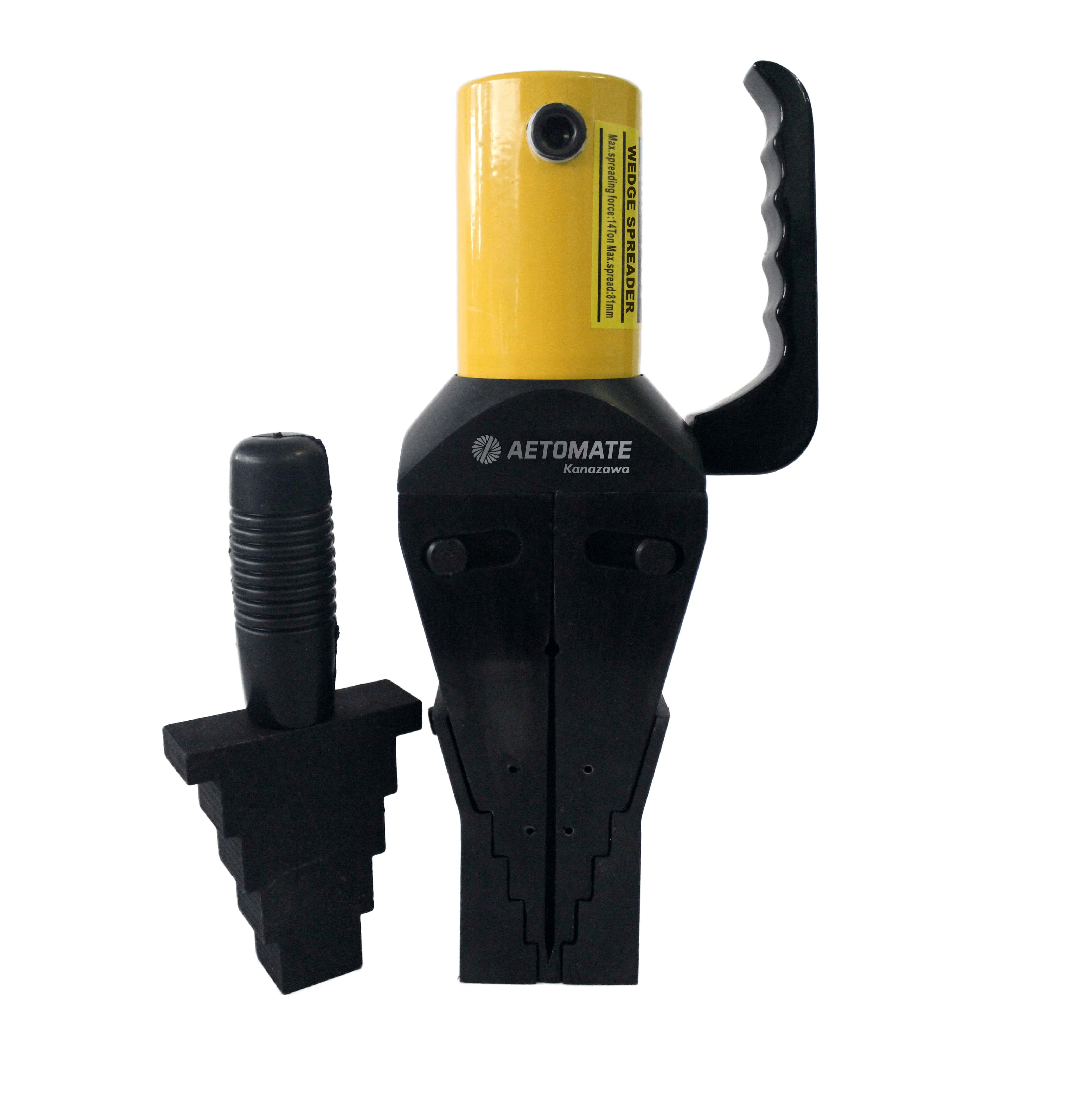

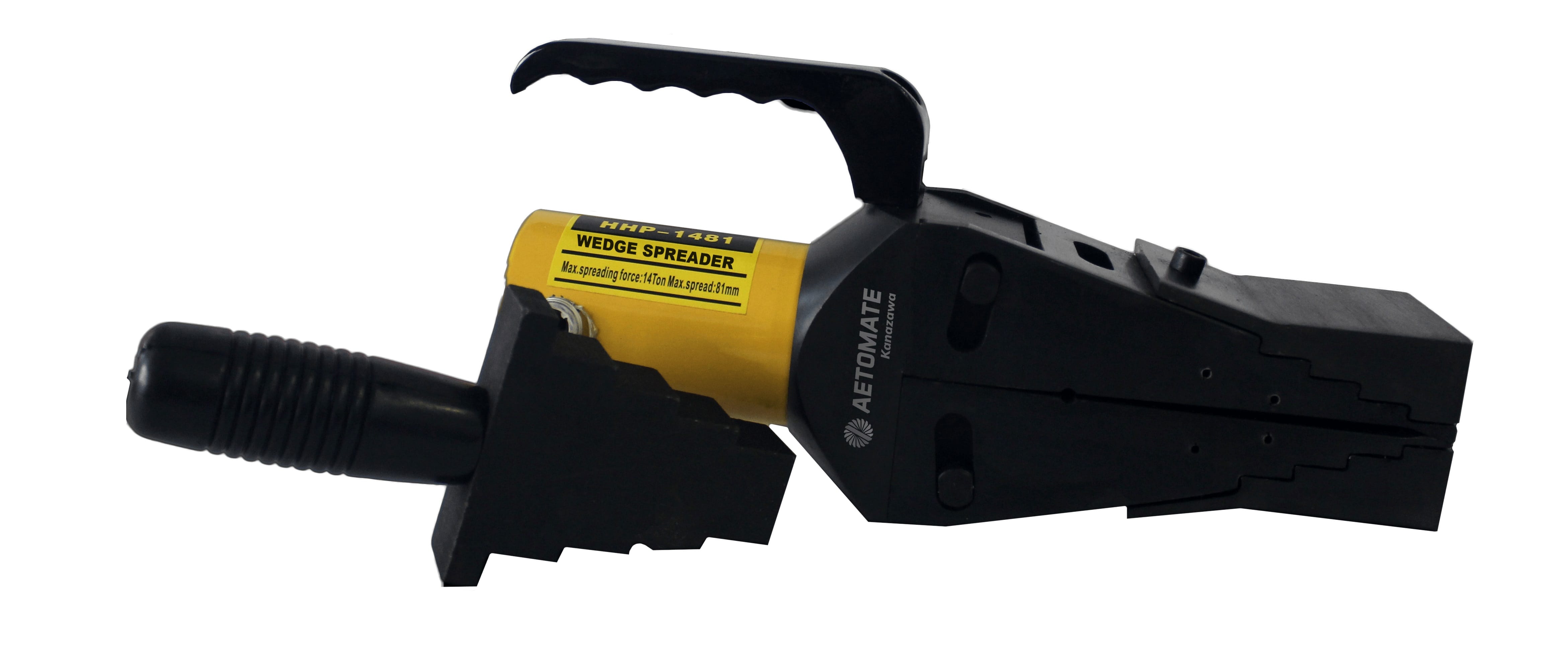

HYDRAULIC WEDGE SPREADER

BRAND: KANAZAWA

Model *

Description

Stock Code Model Max. Spreading Force (Ton) Tip Clearance (mm) Max. Spread (mm) Type Oil Capacity (cm2) G.W (kg)
AQ04952 HHP-1481 14 6 81 Hydraulic Type 70 10.2



Friction free, smooth and parallel wedge movement with unique interlock wedge design

Eliminates flange damage and risk of spreading arm failure

Stepped spreader arm design – each step can spread under full load

Requires very small access gap of only 6mm

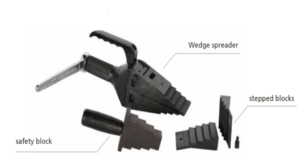

Includes safety block and stepped blocks

Operated by hydraulic pump with rated pressure of 700 bar

Use stepped blocks to increase wedge opening up to 81mm
