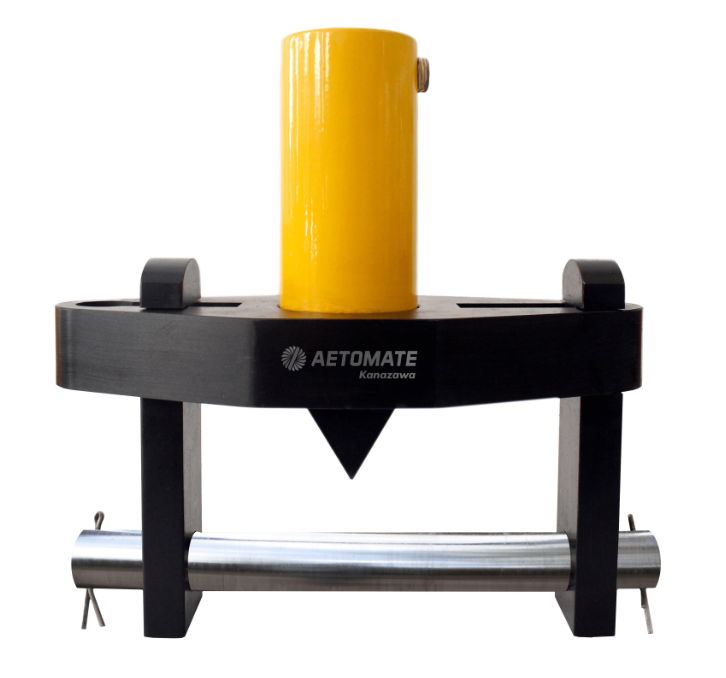

Description
- Lightweight, ergonomic design for ease of use
- Adjustable jaw widths from 70 to 216 mm for a wide range of applications
- Single Acting, Spring Return
- Operated by hydraulic pump with rated pressure of 700 bar
Stock Code |
Model |
Max Flange Thickness (mm) |
Stud Size (mm) |
Standard Wedge (mm) |
Output Force (ton) |
Stroke (mm) |
Packing Size (cm) |
G.W (kg) |
AQ04953 |
HHP-538 |
2 x 57 |
19 – 28 |
3 – 28 |
5 |
38 |
24 x 23 x 10 |
6 |
AQ04954 |
HHP-1054 |
2 x 92 |
31 – 41 |
3 – 28 |
10 |
54 |
32 x 31 x 14 |
13.2 |
| ASA Rating (bar) | Pipe Size (mm) | |
| HHP-538 | HHP-1054 | |
| 10 | 127 – 508 | 558 – 1066 |
| 20 | 63 – 355 | 406 – 711 |
| 27 | 63 – 304 | 355 – 609 |
| 35 | 63 – 254 | 304 – 508 |
| 62 | 12 – 152 | 203 – 406 |
| 103 | 12 – 88 | 101 – 203 |
| 172 | 12 – 63 | 76 – 101 |
