Description
Stock Code |
Model |
Battery Chemistry |
Voltage |
Max Torque (Hard) |
Max Torque (Soft) |
Power Output |
No Load Speed |
Beats per Minute |
Battery |

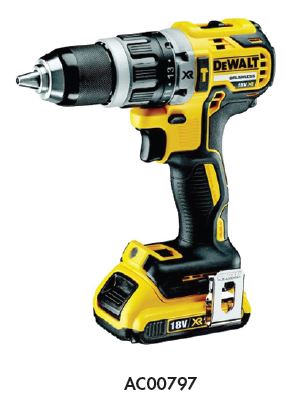

AC00797 |
DCD 796M2-XD |
XR Li-Ion |
18V |
70 Nm |
27 Nm |
460 Watt |
0-550/2000 rpm |
0.9350/ 34000 bpm |
D2-20Ah (KR/B1) M2-4.0Ah (KR/B1) P2.5.0Ah (KR/TW) B-Bare Unit (KR) |
AC00797-1 |
DCD805M2T-B1 |
XR Li-Ion |
20V |
90 Nm |
27Nm |
Gear 1 : 0 – 650min-1 Gear 2: 0-2000min-1
|
Gear 1 : 0 – 11050min-1 Gear 2: 0 – 34000min-1 |
Maximum drilling capacity wood 55mm Maximum drilling capacity steel 13mm Maximum drilling capacity masonry 13mm
supplied with 2x 4.0AH Batteries and Charger
|
AC00797-1 DCD805
Delivers up to 90Nm of torque in a compact 177mm body
2 speed and 15 torque settings give you the ultimate control over your drilling and fastening applications anywhere
Compatible with DeWalt’s NEW Powerstack battery
Access hard to reach work areas
High bit retention with 13mm metal ratcheting chuck
Pro-level speed, control, and precision : high-speed transmission with variable trigger and 2 speed settings ( 0-650 / 0-2,000 rpm )
An enhanced pivoting LED positioned on the foot offers greater visibility in dark and confined spaces – Brighten dark work areas : adjustable 3-position, 3 mode led with up to 70 lumens, including led spotlight mode which features a 20-minute shutoff function for extended work time in low-light spaces
Designed to help you get more done with optimized performance and runtime
